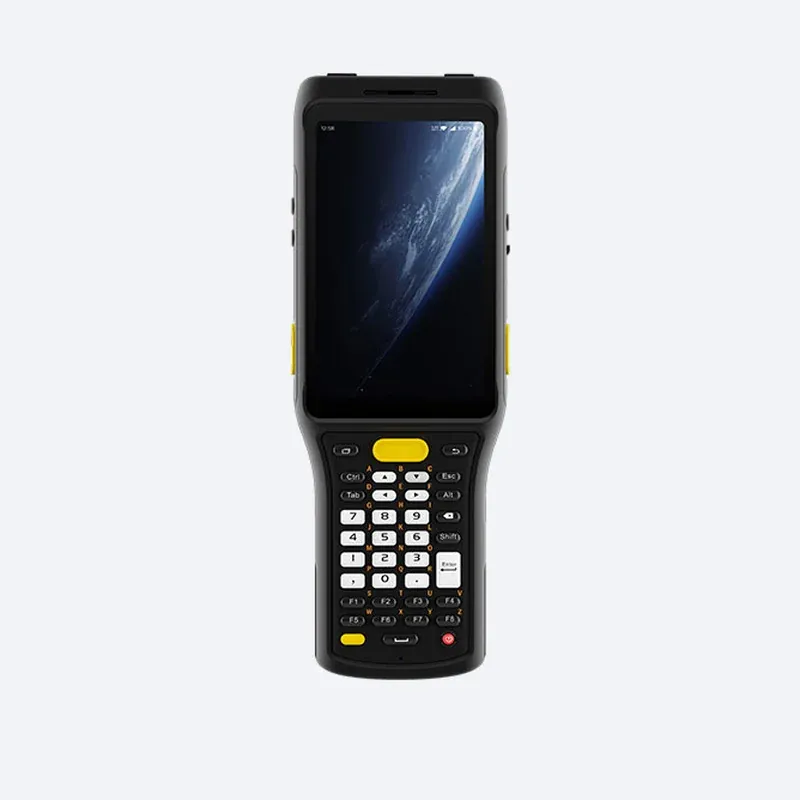

C61UHF RFID Reader (Android 11/13)
3 variants
Chainway C61 UHF is a high-performance key-based RFID reader. Based on Impinj E Series chips, it possesses ultra-long distance/ultra-large-scale/bulk-tags reading ability with accuracy, stability, and speed. Additionally, it supports the latest Impinj Gen2X for enhanced RFID performance. C61 offers abundant options include different keypad versions (27/37/47 keys), a detachable 6700mAh battery, optional 5200mAh battery for pistol grip, and Wi-Fi 6-ready, etc. This device can be easily implemented in various industries like logistics, manufacturing, retailing, etc.
- Dimensions
- 211.4 x 85.8 x 152mm / 8.32 x 3.38 x 5.98in.
- Display
- 4-inch high definition display, 800 x 480
- Touch Panel
- Multi-touch panel, gloves and wet hands supported
- Notification
- Sound, LED indicator, vibrator
- Interfaces
- USB Type-C, USB 3.1, OTG, extended thimble
- Card slot
- 1 slot for Micro SIM card, 1 slot for TF card
- Official Chainway distributor
- Reply within 1 business day
- Local support
Superior UHF Peformance, More Agaile Keystroke
27/37/47 Key Options
11,900mAh Battery, Supports Fast Charging & Hot-Swapping
IP65 & 1.8m / 6ft. Drop
Android 11/13
Self-Developed UHF Module Based on Impinj E Series chips
Impinj Gen2X for Enhanced UHF Performance
1300+ Tags/s Read Rate
30m+ / 100ft.+ Read Range
Optional Long-Range Scanner
Physical Characteristics
| Dimensions | 211.4 x 85.8 x 152mm / 8.32 x 3.38 x 5.98in. |
| Weight | 13.05oz. / 370g(SE4710); 14.25oz. / 404g(SE4850); 26 .05oz. / 738g(SE4850, UHF, pistol battery) Device Weight for Argentina, Uruguay, Bolivia, Ecuador market: 342~404 g, including battery |
| Display | 4-inch high definition display, 800 x 480 |
| Battery | 6700mAh removable main battery, 5200mAh optional pistol battery, support QC3.0 and RTC；Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data securityStandby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h)Continuous use: over 12 hours (depending on user environment)Charging time: 3.5 hours (charge device by standard adaptor and USB cable) |
| Touch Panel | Multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator, vibrator |
| Interfaces | USB Type-C, USB 3.1, OTG, extended thimble |
| Card slot | 1 slot for Micro SIM card, 1 slot for TF card |
| Audio | 2 microphones, 1 for noise cancellation; 2 speakers; receiver |
| Keypad | Main keyboard (Optional): 27 keys / 37 keys / 47 keys;Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key |
| Sensors | Accelerometer sensor, light sensor, proximity sensor, gravity sensor |
Communication
| WLAN | Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;Fast roaming: PMKID caching, 802.11r, OKC;Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations;Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise,etc. |
| WWAN (Europe, Asia) | 2G: 850/900/1800/1900MHz3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39)4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 |
| WWAN (America) | 2G: 850/900/1800/1900MHz3G: 850/900/1900/2100MHz4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38 |
| Bluetooth | Bluetooth 5.1 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
Developing Environment
| Operating System | Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility |
| SDK | Chainway Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
Performance
| CPU | Octa-core, 2.0 GHz |
| RAM+ROM | 3GB + 32GB / 4GB + 64GB / 6GB + 64GB |
| Expansion | Supports up to 256GB Micro SD (TF) card |
User Environment
| Operating Temp. | -4℉ to 122 ℉ / -20℃ to 50℃ |
| Storage Temp. | -40℉ to 158℉ / -40℃ to 70℃ |
| Humidity | 5 RH to 95%RH (non condensing) |
| Drop Specification | Multiple 1.8m / 5.9ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
| Sealing | IP65 per IEC sealing specifications |
| ESD | ± 15KV air discharge, ± 8KV conductive discharge |
Barcode Scanning
| 2D Imager Scanner | Zebra: SE4710/SE55/SE4750SR/SE4750MR/SE4750DP/SE4850 Honeywell: N6603/N6703 CM60 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
UHF RFID
| Engine | Based on Impinj E Series chips |
| Frequency | 865-868MHz / 920-925MHz / 902-928MHz |
| Impinj Gen2X | Supported |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular Polarized Antenna |
| Power | 1W (30dBm, +5dBm to +30dBm adjustable)2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate | 1300+ tags/sec |
| Communication Mode | Pin Connector |
| Max Read Range | 27m (Impinj MR6 tag, size70 x 15mm)26m (Impinj M750 tag, size70 x 15mm)30m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Note | * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. |
| Note2 | *This function is optional |
Camera
| Rear Camera | Rear 13MP Autofocus with flash |
NFC
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
Optional Accessories
| Accessories | Separate handle with one button；Handle + battery (handle battery 5200mAh, one button) ;UHF back clip + handle (5200mAh, one button) ;Wrist Strap; Charging Cradle |
| Note | *See details in Accessory Guide |
